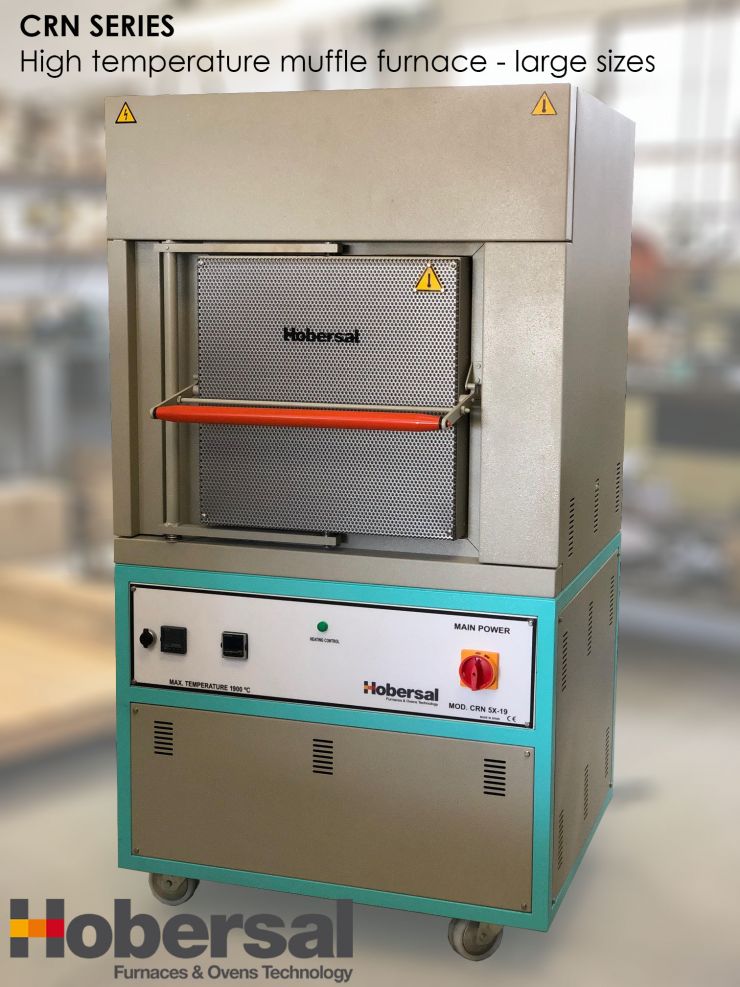

MUFFLE FURNACE CRN SERIES

Features

• Max temp. 1400ºc - 1,500ºc - 1,600c (Silicon Carbide)
• Max temp. 1600ºc - 1800ºc - 1.900ºc (Molybdenum dissilicon resistances)
• Side and vertical door available
• Heating zones located on both sides
• Silicon Carbide resistors allowing heating speed
• Double chamber with forced air circulation
• Heat loss and minimum external temperature
• Robust oven, continuous working periods at high temperatures
• Ceramic fiber insulation chamber and low density refractory bricks
• Double layer of insulation
• Inner stainless steel casing.
• Metallic outer casing with paint protection (optional stainless steel)
• Tabletop oven
• Rear gas outlet chimney
• Thermocouple type S and B
• Ceramic support tray (optional)
• Compact and lightweight ovens

Oven control : Located at the bottom of the oven

• Solid state relay avoiding mechanical noise
• Low voltage thyristor equipment and transformer according to model
• Built-in line input cord
• PAD regulation P. Ramp programmer. Microprocessor. Alarm.
• Disconnecting the oven when opening the door
• Oven disconnection thermocouple break
• General safety switch
• General safety contactor
• Rapid heating and cooling thanks to advanced ceramic fibers
• Easy replacement of heating elements and thermocouple by the user himself
• CE regulation

Optional accessories and equipment

• Ceramic trays
• Gas extractor chimney
• Forced gas extractor chimney
• Class II security. Overtemperature alarm regulation
• Inert atmospheres inlet rear
• Manual or automatic flowmeter equipment for inert atmospheres
• Silicon carbide chamber protection
• Mobile support foot

Optional regulation

• Programmer 1 program of 8 segments
• Programmer 4 programs of 15 segments
• PC communications software
