HOBERSAL – MF SERIES (MUFFLE FURNACE)
Hobersal is a family run company that manufactures furnaces and ovens in Barcelona, Spain since 1946 (75 years of heating technology experience)
Hobersal ranges are from 30ºC to 2.000ºC and from 1litre to 4.500 litres
Hobersal has a distribution network in more than 40 countries.
Hobersal furnaces and ovens are present in applications:
Laboratory, Industry, research, heat treatment, aerospace, automotive, 3d Applications (Sintering), jewellery, arts and crafts, incineration, Advanced ceramic and dental.

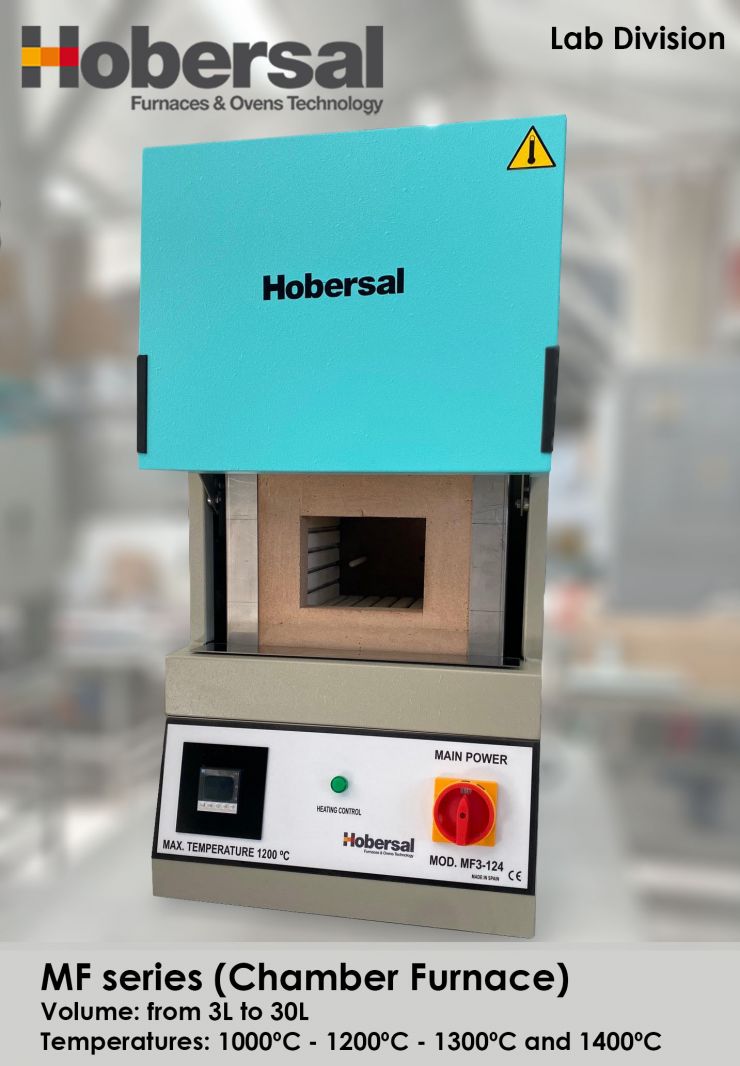

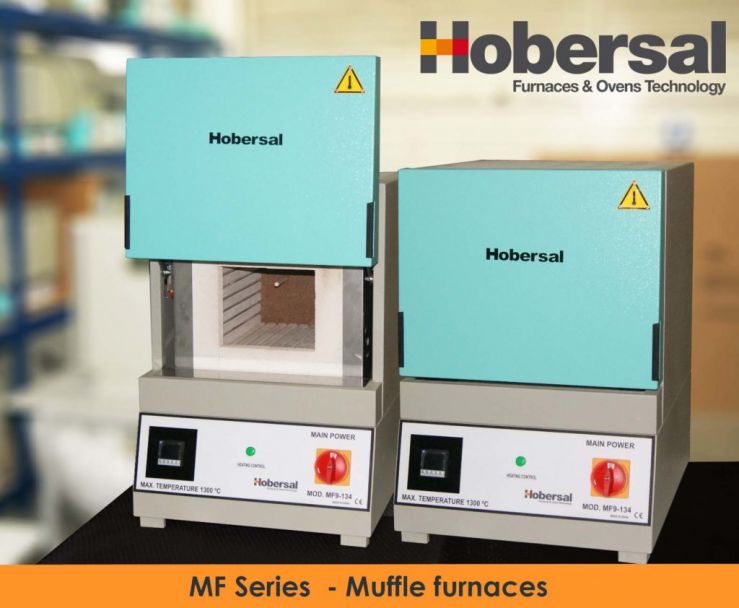

The Hobersal Muffle furnace MF Series this is the best muffle furnace when you need best homogeneity, stability, best results and safety.
MF Series is a muffle furnace with 4 heated zones, vertical lift door, turns off when door opened, furnace disconnection when thermocouple brake, double chamber insulation, included air chamber, electrical parts refrigerated by fan.
Features:
- Temperatures 1.000 ºC – 1.200 ºC -1.300 ºC – 1400ºC
- Vertical lift door
- Let work 24/7 in continuous mode
- 4 heating plates with Kanthal AF – APM
- Low thermal mass insulation
- Built with low density ceramic bricks and ceramic fiber
- Double isolation chamber (Air chamber circulation)
- Outside casing in metal sheet painted ( inox as optional)
- Ventilated via rear by ceramic chimney
- Ceramic tray included
- Thermocouple type K or S
- Compact and lightweight furnace
- Easy to replace all the spare parts by the end user
- Furnace control:
- Under the furnace
- Solid state relay
- PAD Digital control. Microprocessor. Alarm.
- Safety Shut-off
- Thermocouple break shut-off
- Turns off upon door opening
- Manufactured under the CE
- Accessories
- Ceramic tray
- Refractory steel tray
- Smoke chimney
- Forced smoke chimney
- Security class II. Over-temperature protection (OTP)
- Inlet gas entry
- Flow meter box
- Annealing Box
- Optional regulation
- 1 program 8 steps (Programmer)
- 4 program 15 steps (Programmer)
- Programmers up to 64 steps
- Eurotherm Data logger and programmer communication by Ethernet/ RS232
