Vacuubrand Chemistry diaphragm pumps

Chemistry diaphragm pumps

Typical applications for chemistry diaphragm pumps include evacuating chemically aggressive gases and vapors from equipment such as rotary evaporators, vacuum drying chambers, and many other laboratory applications. Chemistry diaphragm pumps from VACUUBRAND feature uncompromising chemistry designs. Their construction with fluoropolymers makes them very resistant to chemical vapors from inlet to exhaust. In this pump technology, pumping chambers are hermetically separated from the drive system. It is characterized by a high level of condensate compatibility. Two-, three- and four-stage pumps additionally have a gas ballast valve for all work with condensable vapors. Diaphragm pumps are oil-free, do not consume any water, and do not generate either wastewater or contaminated oil.

Chemistry diaphragm pumps
Variants with VARIO® control

Oil-free, chemically resistant diaphragm pumps for pumping aggressive gases and vapors.

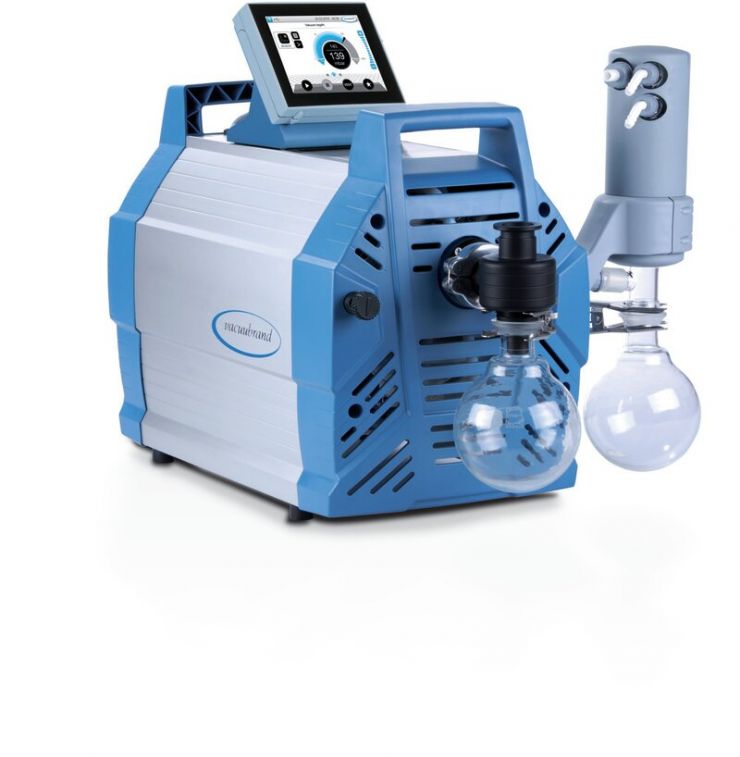

Using the VACUU·SELECT controller, you control the vacuum and process steps intuitively using the touch display. VARIO pumps control the vacuum by adjusting the motor speed. It offers the utmost precision, maximum efficiency and is especially quiet.

The suction-side separator (AK) collects droplets. The pressure-side emission condenser (EK) enables nearly 100% solvent recovery.

Bestseller   Ultimate vacuum / Pumping speed
PC 3001 VARIO select   2.0 mbar / 2.0 m3/h
PC 3004 VARIO select   1.5 mbar / 4.6 m3/h
PC 3012 VARIO select   1.5 mbar / 15.0 m3/h

Chemistry diaphragm pumps

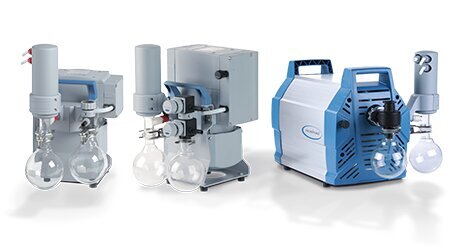

Variants without vacuum control

Oil-free, chemically resistant diaphragm pumps for pumping aggressive gases and vapors.

The suction-side separator (AK) collects droplets. The pressure-side emission condenser (EK) enables nearly 100% solvent recovery.

Bestseller   Ultimate vacuum / Pumping speed
MZ 2C NT +AK+EK   7 mbar / 2.0 m3/h
MD 4C NT +AK SYNCHRO+EK   1.5 mbar / 3.4 m3/h
MD 12C NT +AK+EK   2 mbar / 12.0 m3/h

Chemistry diaphragm pumps

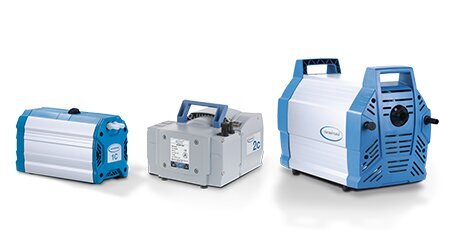

Basic model

Oil-free, chemically resistant diaphragm pumps for pumping aggressive gases and vapors.

Bestseller   Ultimate vacuum / Pumping speed
ME 1C   100 mbar / 0.7 m3/h
MZ 2C NT   7 mbar / 2.0 m3/h
MD 12C NT   2 mbar / 12.0 m3/h

Product Overview

Basic Model	Variants without vacuum control	Variants with two-point vacuum control	Variants with VARIO® control
ME 1C 100 mbar \| 0.7 m³/h	ME 4C NT +2AK 70 mbar \| 3.9 m³/h	PC 510 select 7 mbar \| 2.0 m³/h	PC 3016 VARIO select 70 mbar \| 20.0 m³/h
ME 2C NT 70 mbar \| 2.1 m³/h	ME 8C NT +2AK 70 mbar \| 7.1 m³/h	PC 511 select 7 mbar \| 2.0 m³/h	ME 16C VARIO select 70 mbar \| 20.0 m³/h
ME 4C NT 70 mbar \| 3.9 m³/h	ME 16C NT +EK 70 mbar \| 16.3 m³/h	PC 520 select 7 mbar \| 2.0 m³/h	PC 3002 VARIO select 7 mbar \| 2.8 m³/h

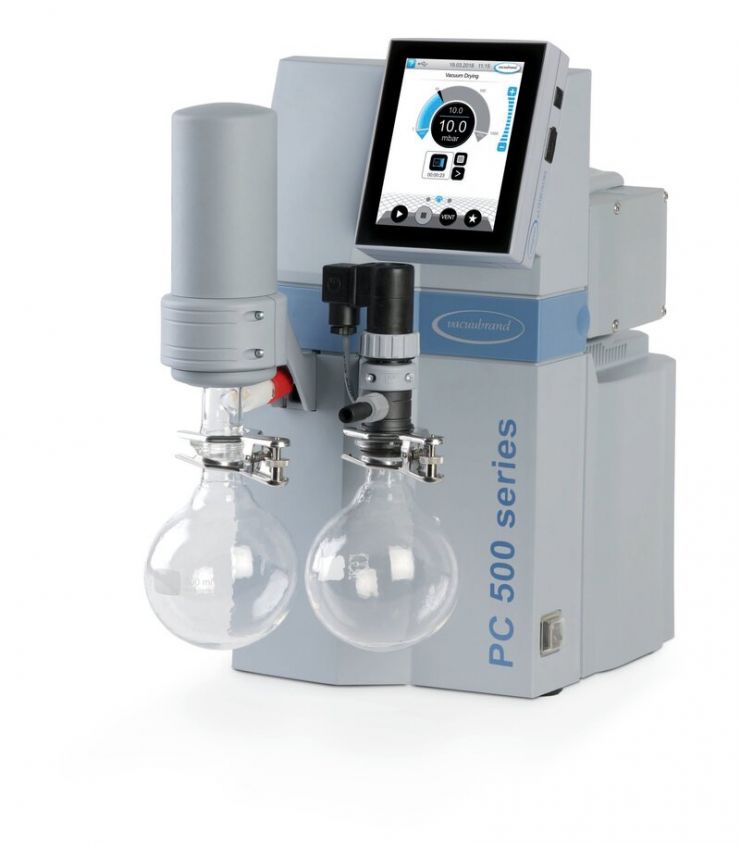

ME 8C NT 70 mbar \| 7.1 m³/h	MZ 2C NT +2AK 7 mbar \|2.0 m³/h	PC 610 select 1.5 mbar \| 3.4 m³/h	MZ 2C VARIO select 7 mbar \| 2.8 m³/h
ME 16C NT 70 mbar \| 16.3 m³/h	MZ 2C NT +AK+EK 7 mbar \| 2.0 m³/h	PC 611 select 1.5 mbar \| 3.4 m³/h	PC 3001 VARIO select 2.0 mbar \| 2.0 m³/h
MZ 1C 12 mbar \| 0.75 m³/h	MZ 2C NT +AK SYNCHRO+EK 7 mbar \| 2.0 m³/h	PC 620 select 1.5 mbar \| 3.4 m³/h	PC 3001 VARIO select TE 2.0 mbar \| 2.0 m³/h
MZ 2C NT 7 mbar \| 2.0 m³/h	MZ 2C NT +AK+M+D 7 mbar \| 2.0 m³/h		PC 3001 VARIO select EK Peltronic 2.0 mbar \| 2.0 m³/h
MD 1C 2 mbar \| 1.3 m³/h	PC 101 NT 7 mbar \| 2.0 m³/h		PC 3004 VARIO select 1.5 mbar \| 4.6 m³/h
MD 4C NT 1.5 mbar \| 3.4 m³/h	MD 1C +AK+EK 2 mbar \| 1.3 m³/h		MD 4C VARIO select 1.5 mbar \| 4.6 m³/h
MD 4CRL NT 1.5 mbar \| 3.4 m³/h	PC 3001 basic 2 mbar \| 2.0 m³/h		PC 3012 VARIO select 1.5 mbar \| 15.0 m3/h
MD 12C NT 2 mbar \| 12.0 m³/h	MD 4C NT +2AK 1.5 mbar \| 3.4 m³/h		MD 12C VARIO select 1.5 mbar \| 15.0 m³/h
MV 10C NT 0.9 mbar \| 9.5 m³/h	MD 4C NT +AK+EK 1.5 mbar \| 3.4 m³/h		PC 3012 NT VARIO DUO 1.5 mbar \| 28 m³/h
	MD 4C NT +AK SYNCHRO+EK 1.5 mbar \| 3.4 m³/h		PC 3003 VARIO select 0.6 mbar \| 2.8 m³/h
	PC 201 NT 1.5 mbar \| 3.4 m³/h		PC 3010 VARIO select 0.6 mbar \| 13.0 m³/h
	MD 12C NT +AK+EK 2 mbar \| 12.0 m³/h		MV 10C VARIO select 0.6 mbar \| 13.0 m³/h
	MD 12C NT +EK 12.0 mbar \| 12.0 m³/h
	MV 10C NT +EK 0.9 mbar \| 9.5 m³/h
